產品關鍵詞：衛生級氣動蝶閥
- 產品名稱：衛生級氣動蝶閥
- 產品編號：
- 產品商標：上海TOP
- 產品規格：DN100
- 參考價格：120
- 更新時間：2014/7/10 17:55:16
- 點擊次數：767次

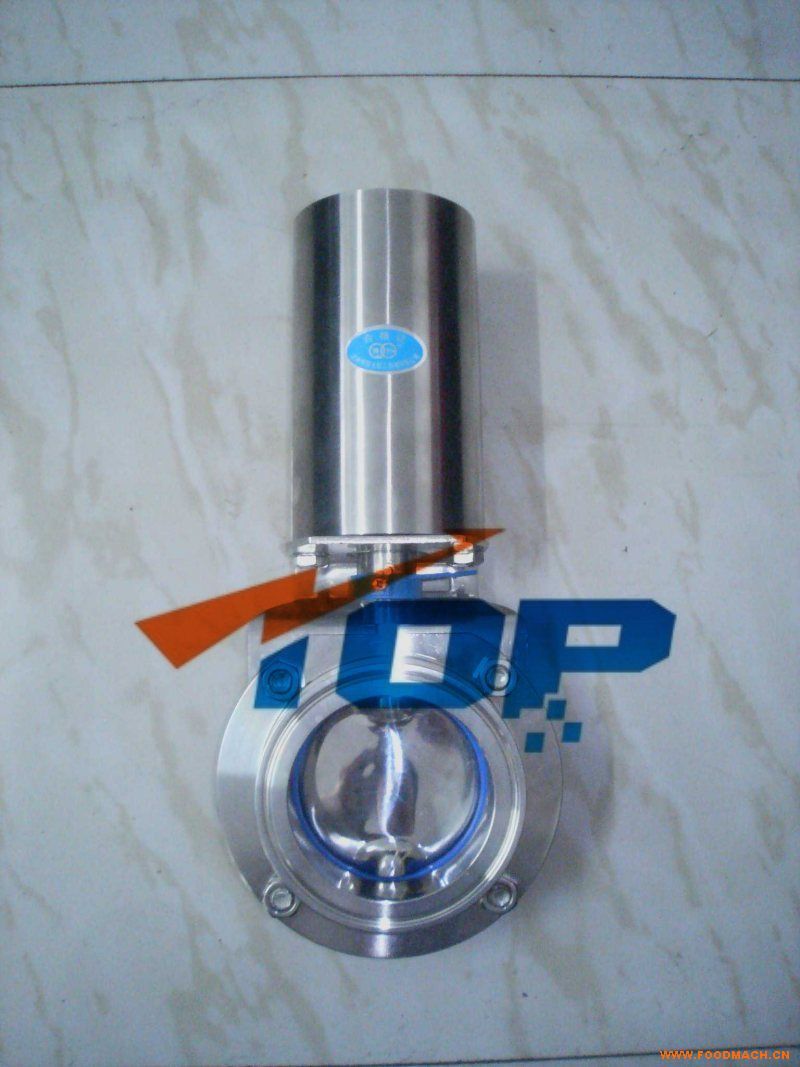

衛生級氣動蝶閥
|
衛生級氣動蝶閥 | |||||||
 |
Size |
O |
G |
A |
Dc |
H |
H1 |
|
DN15 |
78.0 |
34×1/8 |
66.0 |
85.0 |
222.5 |
180.5 | |
|
DN20 |
78.0 |
44×1/8 |
66.0 |
85.0 |
222.5 |
180.5 | |
|
DN25 |
78.0 |
52×1/8 |
66.0 |
85.0 |
222.5 |
180.5 | |
|
DN32 |
88.0 |
58×1/8 |
70.0 |
85.0 |
226.5 |
180.5 | |
|
DN40 |
90.0 |
65×1/8 |
74.0 |
85.0 |
228.5 |
180.5 | |
|
DN50 |
106.0 |
78×1/8 |
76.0 |
85.0 |
236.5 |
180.5 | |
|
DN65 |
124.0 |
95×1/8 |
84.0 |
85.0 |
245.5 |
180.5 | |
|
DN80 |
139.0 |
110×1/4 |
90.0 |
85.0 |
253.0 |
180.5 | |
|
DN100 |
159.0 |
130×1/4 |
105.0 |
85.0 |
263.0 |
180.5 | |
|
DN125 |
185.0 |
160×1/4 |
130.0 |
133.0 |
415.5 |
296.0 | |
|
DN150 |
215.0 |
190×1/4 |
150.0 |
133.0 |
430.5 |
296.0 | |
