產品關鍵詞：裝盒機 多功能裝盒機 食品裝盒機 奶粉裝盒機

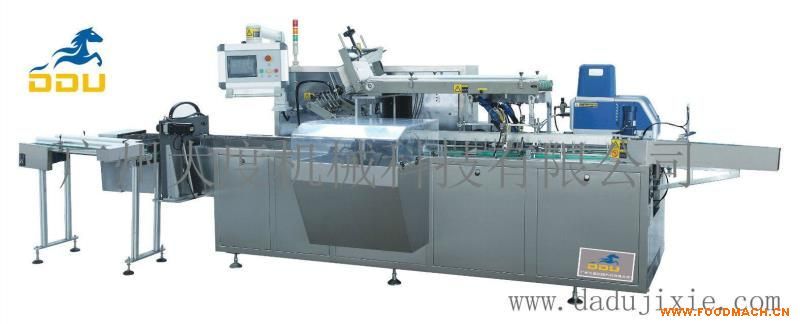

- 產品名稱：大度DDU-120全自動裝盒機 食品裝盒機
- 產品編號：20170510001
- 產品商標：DDU
- 產品規格：3300*1550*1560
- 參考價格：220000
- 更新時間：2017/5/19 9:24:22
- 點擊次數：496次
主要性能結構特點：
采用自動送料、開盒、入盒、打批號、封盒、剔廢等的包裝形式，結構緊湊合理，操作調整簡單；
采用伺服/步進電機和觸摸屏、PLC可編程控制系統，人機界面顯示操作更清晰簡便，自動化程度高，更具人性化；
采用光電眼自動檢測跟蹤系統，空包不下盒，*大限度地節約了包裝材料；
包裝范圍大，調節方便，各種規格尺寸之間可實現快速轉換；
更換規格無需更換模具，只需調節即可實現；
采用物品進盒不到位自動停機和主傳動電機過載保護裝置，適用更安全可靠；
可根據客戶要求，采用上翻式安全防護罩，操作簡便，外形美觀。
可與瓶裝線、灌裝機、貼標機、噴碼機、在線稱量儀、三維包裝機、其它生產線等設備實現聯動生產；
可根據包裝物要求設計各種自動下料器和入盒系統；
可根據客戶要求選配熱熔膠機，采用熱熔膠噴膠封盒。
Main performances and structure features:
1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, box sealing, waste rejecting, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
4. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
5. Change of specifications does not need change of molds, but can be realized through adjustment.
6. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
7. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.
8. Linked production with the bottling line, filling machine, labeling machine, ink jet printer, Shielding="204" valign="center" colspan="2">
項目/型號Item/model
DDU-120
包裝速度Packing speed
30-120盒/分鐘boxes/minute
紙盒尺寸范圍
Size range of carton
L（60-200）mm×W（20-80）mm×H（15-60）mm
紙盒紙質要求
Paper quality of carton
250-300g/m3
說明書尺寸范圍
Size range of use instructions
L（100-260）mm×W（100-190）mm
說明書紙質要求
Paper quality of use instructions
55-70 g/m3
電機功率Motor power
1.5KW
電源類型Power supply type
三相四線380V 50Hz Three-phase four-wire 380V 50Hz
機器噪音Machine noise
≤80dB
氣源Air supply
0.5-0.7 Mpa
耗氣量Air consumption
120-160L/min
外形尺寸Outline dimensions
主機部分
L3100×W1200×H1900 mm
理瓶部分
L1800×W900×H1000 mm
整機重量Machine weight
1200Kg
注：本公司產品更新?lián)Q代較快，若有變動請按實物為準，恕不另行通知！
