| 應用領域 | 食品 制藥 化工 | 物料類型 | 粉狀、粒狀物料 | 適用物料 | 通用 |
| 動力類型 | 電動 | 工作方式 | 攪拌混合機 | 料筒運動方式 | 二維 |
| 結構形式 | 圓筒混合機 | 產品類型 | 全新 | 品牌 | 普友 |
| 型號 | CH | 布局形式 | 臥式 | *大裝料量 | 100（Kg） |
| 每次處理量范圍 | 11-100（千克） | 生產能力 | 100（Kg/次） | 外形尺寸（長*寬*高） | 1400×580×1000（mm） |
| 整機重量 | 350（Kg） | 物料粒度 | 80-200（目） | 卸料方式 | 翻缸傾倒 |
| 規格 | 100 | 攪拌電動(kw) | 2.2 | 倒料電機(kw) | 0.55 |
| 攪拌 轉速 (rpm) | 24 |
CH-100型槽形混合機技術參數：
型號 | 100型 |
漿葉形式 | S式單漿 |
工作容積(L) | 100 |
攪拌漿轉速(r/min) | 24 |
倒拌角度 | <105° |
攪拌電動(kw) | 2.2 |
倒料電機(kw) | 0.55 |
外形尺寸 | 1400×580×1000 |
重量 | 350 |

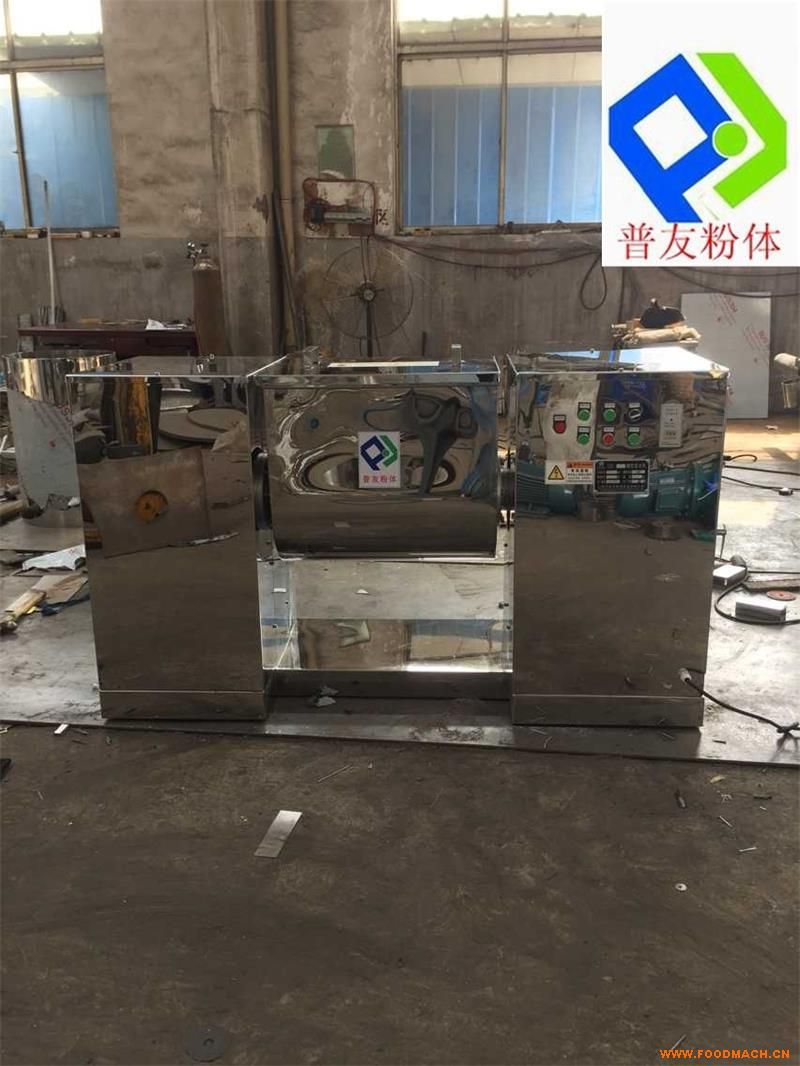

CH-100 Trough type mixing machine：
This CH Trough type mixing machine is designed for thoroughly mixing powders or pastes. It is a horizontal through type mixer with single stirring arm. The stirring arm is removable so that it is easy to clean. The parts’ surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resitent. The mixing trough can automatically reverse for discharge.
Working Principle:
Stype agitating paddle is rotated through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operated with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus, it improves the mixing quality of each batch of material.
Technical Parameter:
Model | CH100 |
Working volume | 100 |
Agitating motor | 2.2 |
Discharging motor | 0.55 |
Overall dimension | 1400×580×1000 |
Weight | 350 |
Turning angle | <105° |
Speed of agitating paddle | 24 |
Type of paddle | S type single paddle |
