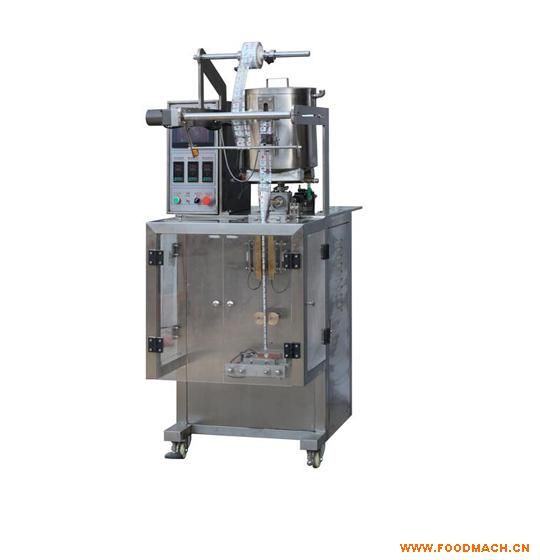

OMW-320 背封果凍條自動包裝機用 途Application
果凍、飲料、水果汁、豆奶、油粉、酸奶的條狀或棒裝包裝。
It is suitable for jelly ,beverage ,fruit juice ,bean milk ,oil powder or
sour milk in both bar and stick shape .
OMW-320 背封果凍條自動包裝機功 能Function
自流式節流下料，封口為背封；
微電腦控制系統，人機界面設定；
自動完成制袋、計量、充填、封合、計數、分切及熱壓批號可定制等作業。
This unit adopts self-flow type feeding and back side sealing
,micro-computer control ,HMI touch setup that can auto complete pouch-making
,measuring ,filling ,sealing ,counting ,
slitting and heat press lot number (customized available) etc.
OMW-320 背封果凍條自動包裝機技術參數Technical Parameter
|
型號Type |
OMW-320 |
|
制袋尺寸Bag Making Range |
Length 30-280mm ; Width 10-90mm |
|
包裝速度Speed |
40-120bags/min |
|
計量范圍Filling Range |
10-100ml |
|
包裝膜*大寬度Film Max. Width |
200mm |
|
包裝膜*大外徑Film Max. Out Dia. |
￠90mm |
|
功率Power |
1.2kw |
|
電壓Voltage |
220V/50Hz |
|
機重Weight |
300kg |
|
外形尺寸Dimension |
700x850x1850m |
