產品關鍵詞：進口承插焊針型閥
- 產品名稱：進口承插焊針型閥（RBT德國原裝進口針閥）
- 產品編號：
- 產品商標：RBT
- 產品規格：見說明
- 參考價格：面議
- 更新時間：2017/12/25 17:00:41
- 點擊次數：416次

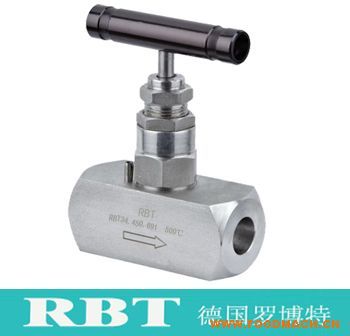

進口承插焊針型閥（RBT德國羅博特品牌）
→產品概述
德國羅博特（RBT）品牌：進口承插焊針型閥這種緊湊且經濟型的JC系列承插截止閥是按照*高的標準生產的。設計扭矩低，即輕便又易于操作。硬座STL壓力6000 Ps（414BAR）其高精密度的金屬閥蓋與閥體密封以使它適臺高壓的工作要求。
Robert, Germany imported the plug welding needle valve JC series socket welded globe valve is designed with the most compact and economical pattern with lightweight and low torque far easy operation, andrated up to 6000PSI (414BAR) metal seat and stellite-welded stem tip. It hasa high integrity metal to metal body bonnet seal suitable for high pressureuse.
→特點性能
1、設計特征；
2、緊湊而輕便；
3、柔性石墨密封壓力裝置:閥桿操作時*無泄漏；
4、螺紋下的密封填料可以防止螺紋被流體介質所腐蝕；
5、兩個流景口，有合適的流量方向。
Design features
Compact and lightweight.
Pressure responsive Graphoil packing seal arrangement;positive no slack Stem action.
Packing seal below actuating threads to prevent thread contamination by the prpcess medium
Bi directional flow, with preferred flow indicated.
→技術參數
接管通徑:DN6-DN25 1/4—1″
公稱壓力:1000PSI～10000PSI
連接方式:插焊式
閥體材質:SS304、SS304L、SS316、SS316L、CrNiMo、12Cr2Mo1、1Cr5Mo
工作溫度:硬座STL+石墨-: ≤570℃;
入口密封按標準設置;
可靈活更換的填料從而其延長使用壽命;
所有主要元件的原材料都是可追溯的;
100%通過靜壓測試;
倒關密封延長填料壽命;
所有材料性能結構都達到NACE MR-01-75*新版本要求.
Take over the path: DN6-DN25 1/4 - 1 "
Nominal pressure: 1000PSI ~ 10000PSI
Connection mode: plug welding
Body material: SS304, SS304L, SS316, SS316L, CrNiMo, 1Cr5Mo, 12Cr2Mo1
Temperature rating up to 570℃ with metal seat R graphite packing.
Ingress seals fitted as standard.
Flexible packing for replacement can extend field life further
Full material traceability of main components.
100% Hydrostatic testing.
Back sealing stem to extend packing life.
Materials of cantruction can be supplied to meet the requirements of
NACE MR-01-75 latest revision.
→型號與零部件材質
型號 | 閥體 | 接頭 | 閥桿 | 螺帽 | 填料 |
RBT-160 | 20# | 20# | 2Cr13 | 20# | 柔性石墨、四氟 Leslble graphite |
RBT-160P | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 柔性石墨、四氟 Leslble graphite |
RBT-160V | 12CrMov | 12CrMov | 12CrMov | 20# | 柔性石墨、四氟 Leslble graphite |
→連接尺寸Connection size
規格 SPECIF ICATION | Do | D | H | L |
DN6 | Φ14 | Φ70 | 74 | 60 |
DN10 | Φ18 | Φ80 | 85 | 60 |
DN15 | Φ22 | Φ80 | 102 | 65 |
→應用場合：水、油品、蒸汽、天然氣，石油化工，海洋石油平臺，化工化學，電力工業氣及某些腐蝕性液體等介質。
